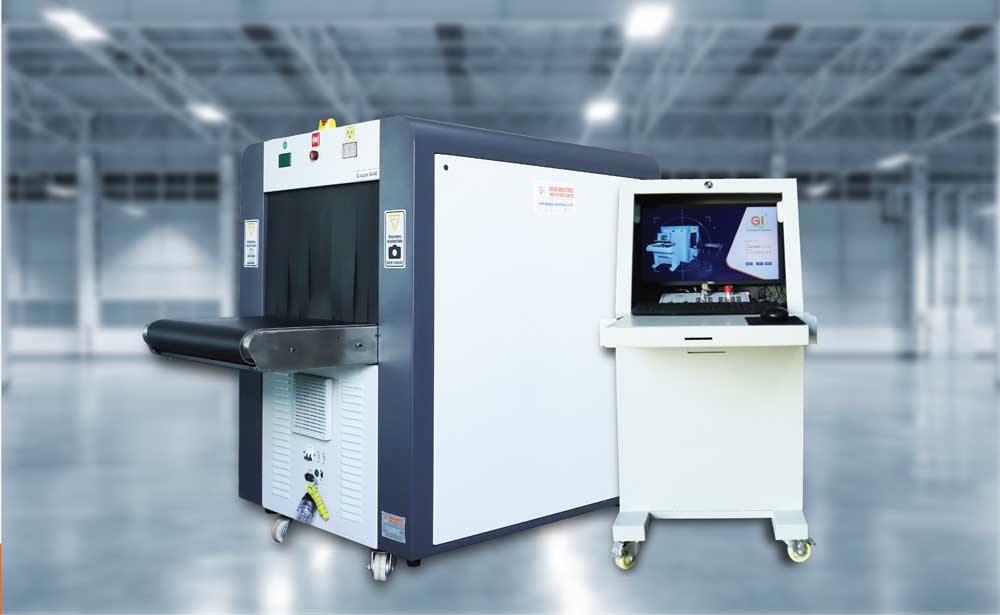

X Ray Baggage Scanner G-scan 6040 3D (Isometric View)
Description
Gujar Industries India Pvt. Ltd. G-scan 6040 3D Isometric View x-ray baggage inspection machine, has a tunnel size of 600 mm by 400 mm and can scan objects higher than standard size. G-scan 6040 3D isometric view is an advanced x-ray machine with features such material detection, High resolution image, international quality standards, Robust design, High load bearing capacity and precise threat scanning. Having a capacity to scan 3D and get isometric view makes G-scan 6040 3D isometric view x-ray baggage scanning system an edge over others.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 600 x 400 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 160 kg |
| 3 | Product Weight (kg) | 600 kg |
| 4 | Dimensions (mm) | 1390x910x2000 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 0.5 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160 |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Bottom/Side |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 700 mm |
