Full Body X-Ray Scanner

Description

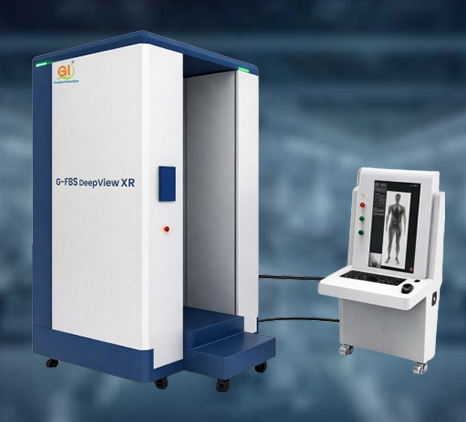

The G-FBS DeepView XR is a cutting-edge, low-dose full-body X-ray scanner designed for highsecurity, non-intrusive personnel screening. It can detect concealed objects both externally and internally, including those under clothing, inside prosthetics, or hidden within body cavities.

Provides full head-to-toe inspection, including footwear screening, with advanced image processing for clear visualization and precise threat detection.

Technology: Low-dose X-ray transmission for safe and effective scanning.

Architecture: Static walk-through design with a single-view vertical scanning configuration for efficient operation

Performance: High-throughput scanning with fast scan times of 5–10 seconds per person

Privacy Protection: Automatically masks sensitive anatomical areas while maintaining image clarity for accurate security assessment.

High-Resolution Imaging: Combines a low-dose X-ray generator with high-sensitivity detectors to produce detailed projection images for precise threat detection.

Seamless Integration: Compatible with enterprise security networks, access control systems, and central monitoring workstations

Made In India: Proudly engineered and manufactured in India, ensuring consistent reliability, operational efficiency, and superior performance in critical security environments.

Detection Capabilities

The G-FBS DeepView XR accurately identifies :

Metallic & non-metallic weapons, firearms

Explosives, detonators, and related components

Narcotics & illicit drugs.

Liquids & fluid-based contraband

Precious metals & gemstones

Electronic devices and components

Biological/chemical material containers.

Currency, concealed packages or prohibited items.

Key Features

High-Resolution Imaging:

Crystal-clear, detailed images for reliable threat detection

Privacy Protection:

Masks face, chest, and lower abdomen

Threat Image Projection (TIP):

Integrated for operator training and performance evaluation

Comprehensive Detection:

Metallic and non-metallic threats, explosives, narcotics, electronics, currency, contraband

Easy Deployment & Relocation:

Compact modular design

Intelligent Software Platform:

Advanced image processing & analytics

Seamless System Integration:

Works with access control, alarms, and security databases

Secure Data Management:

Encrypted storage, retrieval, and transfer

Reliable & Cost-Effective:

Low operational and maintenance costs

Compliance:

CE and ISO certified

Customization & Flexibility

Configurable hardware for site-specific requirements

Custom detection profiles (threat libraries, sensitivity, alarm rules).

Integration with existing infrastructure and third-party systems.

Self-diagnostic monitoring for uptime and maintenance.

Integrated lockable console desk for secure operation.

Deployment-specific options (console design, enclosure finish, peripherals).

Optional Advanced Capabilities

AI-Based Threat Detection: Automated, intelligent threat recognition for faster decision-making and improved detection accuracy.

Video Surveillance & Photo ID Integration: Integrated CCTV monitoring with synchronized video recording and identity verification, enabling real-time observation, complete audit trails, and post-event review.

Biometric & Intercom System: Built-in biometric authentication with two-way intercom for secure access control and clear operator–subject communication.

X-Ray Protective Shield with Viewing Window: Radiation-shielded protective barrier featuring an integrated viewing window to ensure operator safety without compromising visibility

X-Ray Protective Operator Cabin: Fully enclosed, radiation-protected operator cabin designed for safe, comfortable, and extended operational use.

Technical Specifications

System Specification
Parameter	Specification
Working Mode	Vertical scanning of full body in a single pass
Technology	Low-dose X-ray transmission
Scan Time	5–10 seconds per scan
Dose per Scan	0.25 – 4 μSv (adjustable)
Resolution	38 AWG (detects 0.1 mm metal wire at max dose)
Penetration	25 mm steel at max dose
OS	Windows 10 or latest
Scanning Height	Up to 2250 mm
Dimensions	L 2200 × W 2000 × H 2600 mm*
Weight	900 kg*
Power	<1 kVA
Storage Environment	-20°C to +60°C
Operating Environment	0 to +50°C, 5–95% RH non-condensing
Voltage/Frequency	220 VAC ±10%, 50 Hz
Duty Cycle	100%
Emergency Switch	Yes

Software Features
Parameter	Specification
Scanner Control	Full control of all components
Image Evaluation	Zoom, pan, mark and enhancement filters
Image Archive	Secure storage and retrieval
User Management	System supports three-level user management: Operator, Supervisor, and Administrator
Zoom & Pan	Interactive navigation for detailed inspection
Image Comparison	View two images simultaneously for comparison
Contrast Enhancement	Improves visibility
Edge Enhancement	Clarifies object boundaries
Brightness & Contrast Control	Adjustable, multiple presets
Black / White Inversion	Option to invert colors for analysis
Image Export	Export in BMP, JPG, and other standard formats

Applications

Border, Customs & Transportation:

Land border check posts (ICP/LCS), customs checkpoints, airport approach roads and staff entry gates, seaports, container terminals, toll plazas, railway yards, and metro depots.

Aviation & Airports:

Passenger, staff, and secondary screening at domestic and international airports

Border, Customs & Immigration:

Land border check posts, integrated check post, land customs station, immigration, and customs zones.

Government & Legislative Facilities:

Ministries, secretariats, parliament buildings, and assemblies.

Defense & Paramilitary Installations:

Military bases, naval dockyards, air force stations, strategic command centers, National ordnance factories, Arms and ammunition plants

Law Enforcement & Intelligence:

Police HQs, intelligence and special branch offices.

Correctional Institutions:

Prisons, high-security jails, detention and remand centers.
