G-FIS 4422
Description
Gujar Industries is a leading manufacturer of advanced X-Ray Food Inspection Systems, engineered for highprecision contaminant detection, automatic rejection, and superior quality assurance across modern foodproduction environments.
Featuring Dual-Energy detection technology, G-FIS 4422 system deliver exceptional accuracy with significantly reduced false rejects. Adaptive image processing and proprietary multi-level detection algorithms ensure sharp, high-clarity imaging for reliable and consistent contaminant identification.

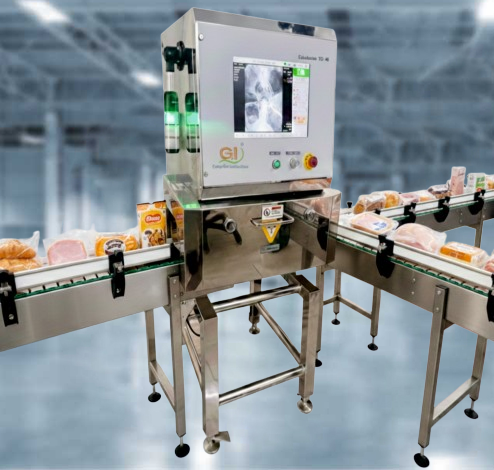

Designed specifically for packaged products and end-of-line quality control, the G-FIS 4422 system complies with international food-safety standards and integrates seamlessly into automated processing lines. With intuitive operation, hygienic stainless-steel construction, and robust industrial performance, it ensures maximum inspection efficiency and reliability.
Advanced Contaminant Detection
G-FIS 4422 X-ray Food Inspection Systems feature state-of-the-art sensor technology and intelligent imageprocessing software, delivering exceptional sensitivity to both metallic and non-metallic contaminants. Designed for small to medium-sized packaged products, the system ensures precise identification of foreign bodies even those that are low-density, microscopic, or hidden within complex or metallized packaging.
Metals: Ferrous, non-ferrous, stainless steel (SUS).
Non-Metals: Glass (including thin and fluorescent fragments), ceramic, stones, cement / concrete particles, raw & calcified bone fragments.
Industrial & Packaging Materials: Hard plastics, low-density plastics, PVC, rubber, wood, paper, cardboard, insects, hair, fluorescent tubes
Special Conditions: Contaminants inside aluminum-foil or metallized packaging, underweight / under-filled products missing or broken items, and packaging defects
Detection is based on advanced density-variation analysis, enabling accurate identification of contaminants beyond the capabilities of traditional inspection technologies.
Comprehensive Product Inspection
In addition to contaminant detection, G-FIS 4422 systems provide complete realtime product integrity inspection, including:
- Fill-level monitoring
- Component completeness verification.
- Shape and form analysis.
- Identification of internal defects such as breakage, voids, air bubbles, and under-filled packs
This advanced inspection technology minimizes the risk of product recalls, customer complaints, and brand damage.
| Machine Specifications | |
|---|---|
| X-ray Source | Standard |
| X-ray Beam Direction | From the top |
| Scanning Method | Linear Scanning |
| Detector | Dual Energy with Multi-level Algorithms |
| Detection Tunnel Size | 440mm(W) * 220mm(H) |
| Min. Detection Accuracy with product | SUS material: ≥ Φ 0.4mm, SUS wire: ≥ 0.3*2 mm, Ceramic material: ≥ Φ 0.8 mm, Glass material: ≥ Φ 1.0 mm |
| Conveyor Speed | 5-60 m/min.* |
| Loading Capacity | Standard: ≤10 Kg. |
| Dimension | 850 x 730 x 1680mm (L x W x H)* |
| Weight | Approximate weight: 300Kg* |
| Conveyor Height | 700 mm |
| Max Throughput | Up to 400 products per minute * |
| Power Supply | AC220V ±10%, 50Hz |
| Connectivity | LAN port & USB port |
| Screen | 17 inch full color touchable screen |
| Reaction to defectives | Buzzer, red light alarm or belt stop once foreign body is detected |
| Material of construction | Stainless steel |
| Cooling Mode | Industrial cooling fan |
| Storage Environment | Temperature: -20°C-50°C |
| Working Environment | Temperature: -5°C-40°C; humidity: 30-90%RH (no condensation) |
| X-ray Leakage | < 1μSv/h |
| Hygienic Protective Design | Food-grade construction with detachable components for easy cleaning and hygiene compliance. |
| Conveyor Material | High strength polyurethane 1.2mm green food grade PU belt |
| Emergency Stop Button | Yes, included |
| IP Rating | IP66 |
| Automatic Rejecter | NG shutdown, air jet, swing arm, push rod, sinking, flipping, etc. to be customized |
| Inspected items packing | In bag, box, or bulk |
| Compliance & Certifications | FSSAI, CE, ISO, FDA, AERB standards |
| Working Capability | Continuous 24×7 Operation |
| Machine Specifications | |
|---|---|
| O/S | Windows 10 or latest |
| Software | G-scan X-ray Food Inspection Software |
| Parameter Adjustment | Auto Setting & Manual Setting |
| Operation Language | English |
| Multi-levels management | System supports three-level user management: Operator, Supervisor, and Administrator |
| Product Management | Complete product log |
| Image Management | Auto image Save, Analysis, Print |
Applications:
Suitable for a wide range of packaged food and ingredient inspection including:
Cost-effective and highly reliable, G-FIS 4422 Systems offer a next-generation alternative to traditional X-ray equipment with reduced maintenance and superior operational value.
