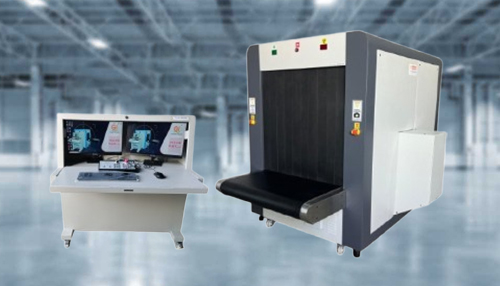

X Ray Baggage Scanner G-scan 10080 DV
Description : G-scan X Ray Baggage Scanner 10080 DV
Gujar Industries India Pvt. Ltd. G-scan x ray baggage scanner 10080 DV is an ideal solution for inspection of heavy baggage. An ideal solution for threat detection in passenger’s baggage. Threat detection in large boxes, cargo or passenger’s baggage everything is made easy with our powerful G-scan 10080 DV.
Application
Our G-scan X Ray Baggage Scanner 10080 DV for Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 1000 x 800 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 200 kg |
| 3 | Product Weight (kg) | 900 kg |
| 4 | Dimensions (mm) | 1880x1750x2990 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 1 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160-200 kv |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Bottom/Side |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 620 mm |
